Patient Records Consistency: Single Site, Anomaly Detection, Cross-Sectional Analysis


Created

2024-12-17

Last Modified

Click on the thumbnail above to preview images.

Files

1 Download↓
↓

Domain

Category

Parameters

Publisher

PEDSnet

Abstract

This check provides analyses to identify anomalous data at the level of a single site. The Patient Record Consistency module, part of the larger SSDQA ecosystem, tests the consistency of clinical data representation within a patient’s record. The goal is to ensure that the patient’s information is confirmatory and complete, such that two events that are expected to co-exist do both occur within the same patient (i.e. a leukemia diagnosis and chemotherapy).

Data Requirements

cohort , prc_event_file , omop_or_pcornet , multi_or_single_site , anomaly_or_exploratory , age_groups , patient_level_tbl , fu_breaks , p_value , time , time_span , time_period

Probe

Clinical Assessment

Access Package

# install.packages("devtools") devtools::install_github('ssdqa/patientrecordconsistency')

Visualization Output

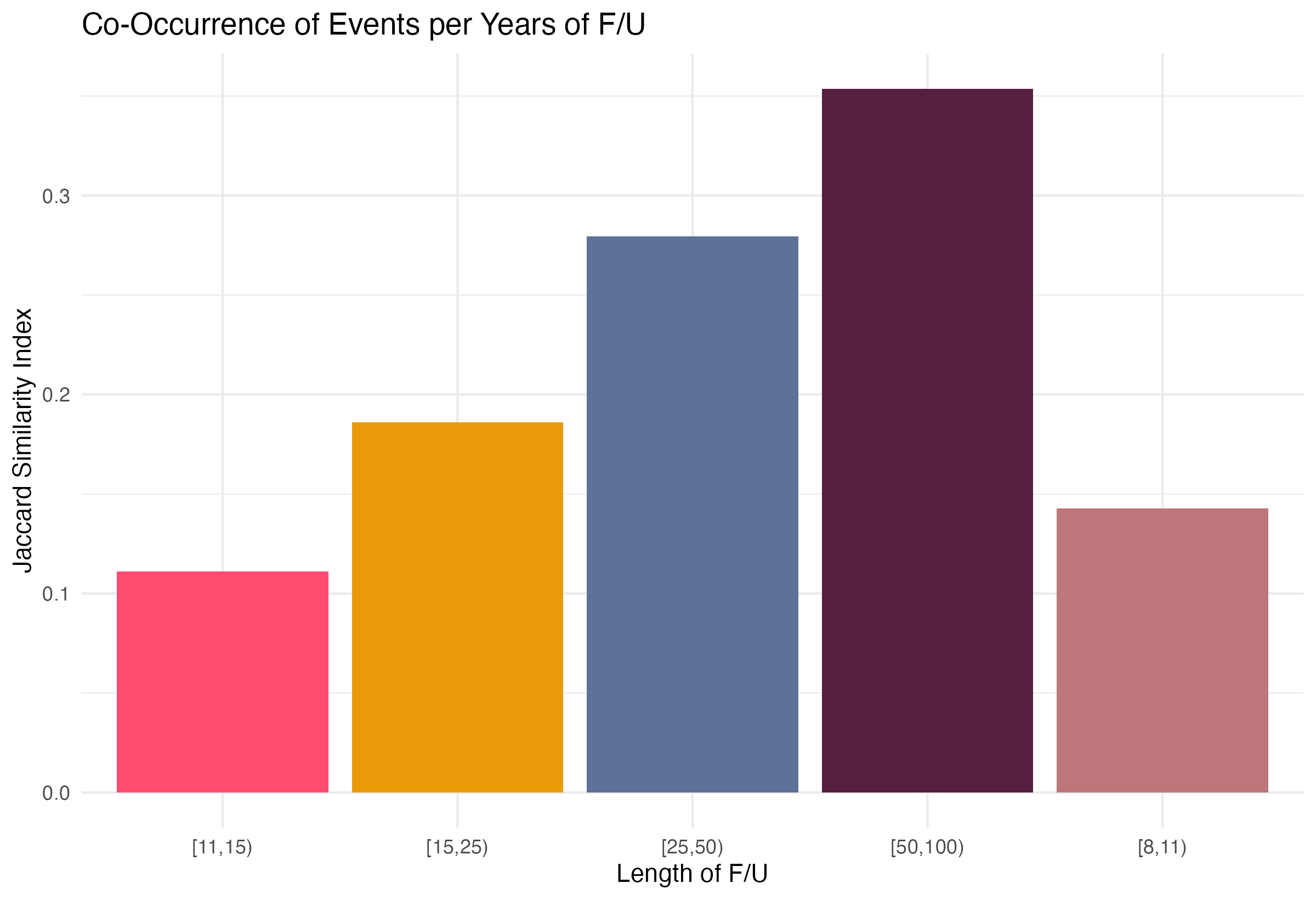

This check outputs a bar graph displaying the Jaccard similarity index for categories of F/U time.

The length of F/U “bins” are provided by the user via a vector of integers for breaks. Each bin includes the starting integer and up to but NOT including the ending integer. For example, [0,1) includes patients with F/U between 0 and 0.99 years.

Raw Output

This check produces a raw data output containing 11 columns of data:

Column Data Type Definition
site character the name of the site being targeted
fu_bin character the categorical bin of follow up time defined by the user in the fu_breaks parameter
concept1 character the name of the first event being compared in the similarity index
concept2 character the name of the second event being compared in the similarity index
cocount numeric the number of patients with evidence of both events
concept1_ct numeric the number of patients with evidence of event 1
concept2_ct numeric the number of patients with evidence of event 2
concept_count_union numeric the number of patients with evidence of either event
jaccard_index numeric the jaccard similarity index (cocount / concept_count_union)
concept1_prop numeric the proportion of patients with evidence of event 1 (cocount / concept1_ct)
concept2_prop numeric the proportion of patients with evidence of event 2 (cocount / concept2_ct)

Affiliation(s)

PEDSnet Data Coordinating Center

Funder(s)

This research was made possible through the generous support of Patient-Centered Outcomes Research Institute. The statements presented in this work are solely the responsibility of the author(s) and do not necessarily represent the views of PCORI, its Board of Governors, or its Methodology Committee.

Provenance

Description

Development Code

https://github.com/ssdqa/patientrecordconsistency
